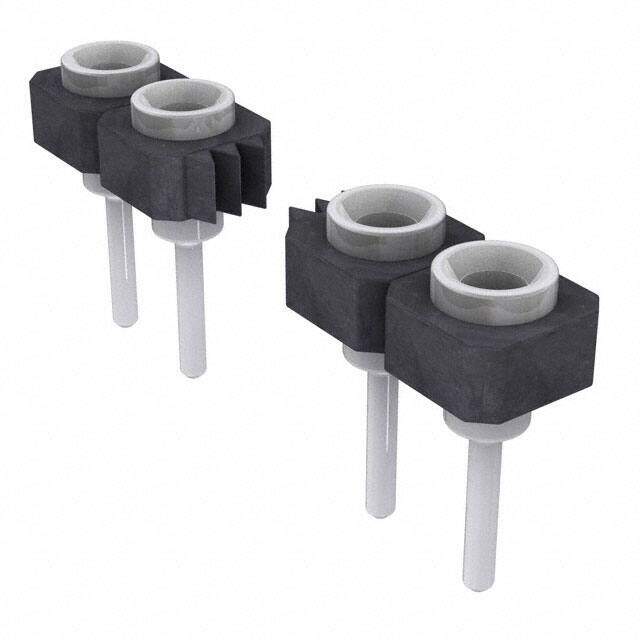

SL-132-TT-11 image
Favorite
SL-132-TT-11 image
Favorite

SL-132-TT-11

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT .100 32POS TIN PCB
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.1856
≥100 USD $2.7104
≥500 USD $2.4112
≥1000 USD $1.8216
≥3000 USD $1.680958
Inventory: 1093
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester

Technical

Operating Temperature -55°C~105°C
Packaging Tube
Published 2008
Series SL
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 32
Number of Rows 1
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.132 3.35mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Contact Length - Post 0.108 2.75mm
Housing Color Black
Contact Resistance 10mOhm
Max Current Rating 1A

Dimensions

Length 81.28mm
Width 2.54mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
