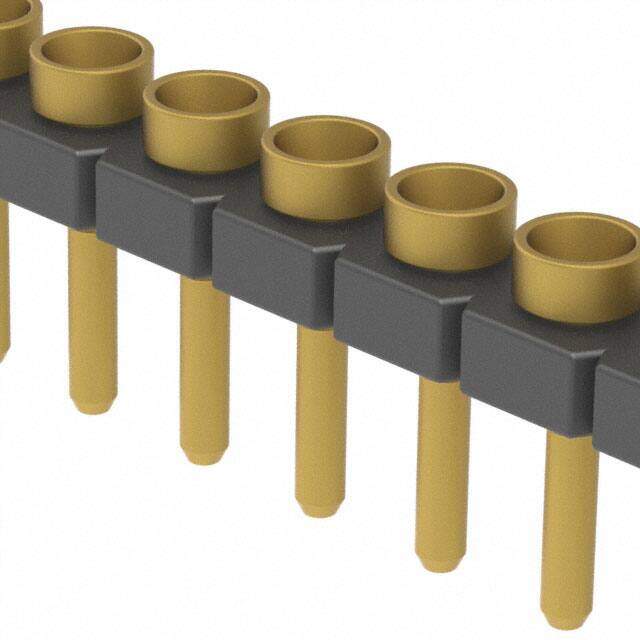

SL-120-G-30 image
Favorite
SL-120-G-30 image
Favorite

SL-120-G-30

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description LOW PROFILE LOW INSERTION FORCE Rectangular Connector Header
PDF
/
Inventory: 1587
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Length 50.8mm

Technical

Max Current Rating 1A
Contact Resistance 10mOhm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.050 1.27mm
Depth 2.54mm
Orientation Straight
Total Number of Contacts 20
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature LOW PROFILE, LOW INSERTION FORCE
Number of Rows 1
Number of Positions 20
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SL
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Polyester
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Contact Material Beryllium Copper

Supply Chain

Factory Lead Time 3 Weeks
