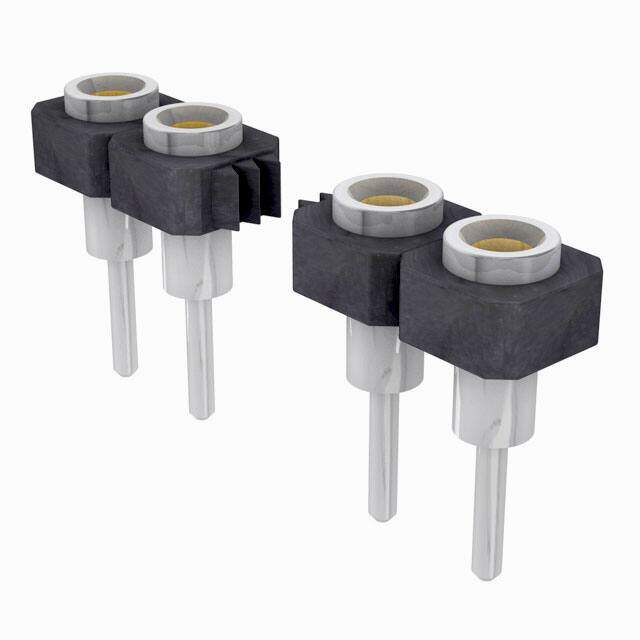

SL-111-T-11 image
Favorite
SL-111-T-11 image
Favorite

SL-111-T-11

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT .100 11POS GOLD PCB
PDF
/
Inventory: 4890
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester

Technical

Operating Temperature -55°C~125°C
Packaging Tube
Published 2008
Series SL
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 11
Number of Rows 1
Gender Female
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.132 3.35mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Contact Length - Post 0.108 2.75mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Contact Resistance 10mOhm
Max Current Rating 1A

Dimensions

Length 27.94mm
Width 2.54mm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
