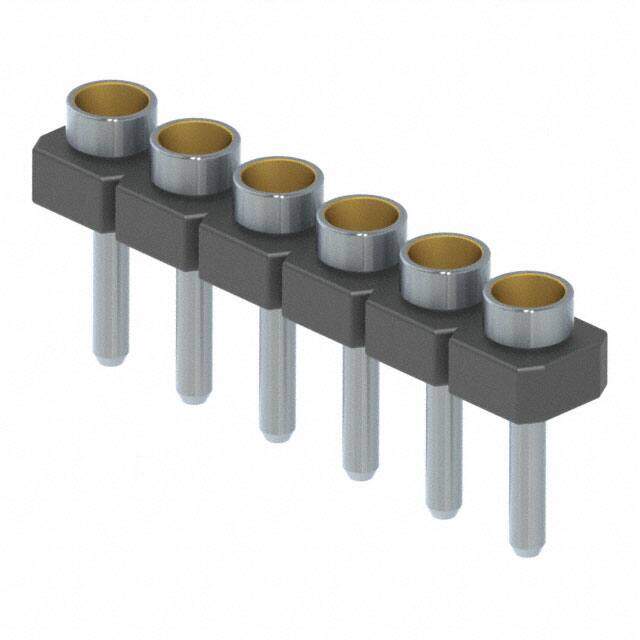

SL-106-T-30
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
LOW PROFILE LOW INSERTION FORCE Rectangular Connector Receptacle
PDF
/
Inventory: 7082
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Resistance 10mOhm
Max Current Rating 1A
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.050 1.27mm
Depth 2.54mm
Orientation Straight
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE, LOW INSERTION FORCE
Number of Rows 1
Number of Positions 6
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SL
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 15.24mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Housing Material Polyester
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Contact Material Beryllium Copper
