SL-105-TT-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

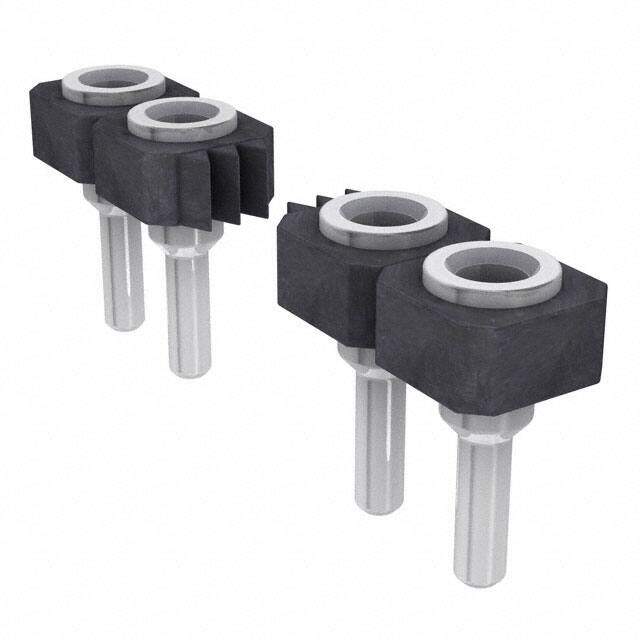

SAMTEC SL-105-TT-12 Board-To-Board Connector, Vertical, SL Series, 5 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.093885
≥1 USD $1.093885
≥10 USD $1.031974
≥100 USD $0.973561
≥500 USD $0.918445
≥1000 USD $0.866459
Inventory: 4140
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 2.54mm
Length 12.7mm
Height 1.27mm
Technical
Max Current Rating 1A
Contact Resistance 10mOhm
Housing Color Black
Contact Length - Post 0.095 2.41mm
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.095 2.41mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Number of Rows 1
Number of Positions 5
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Series SL
Published 2008
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 6 Weeks
