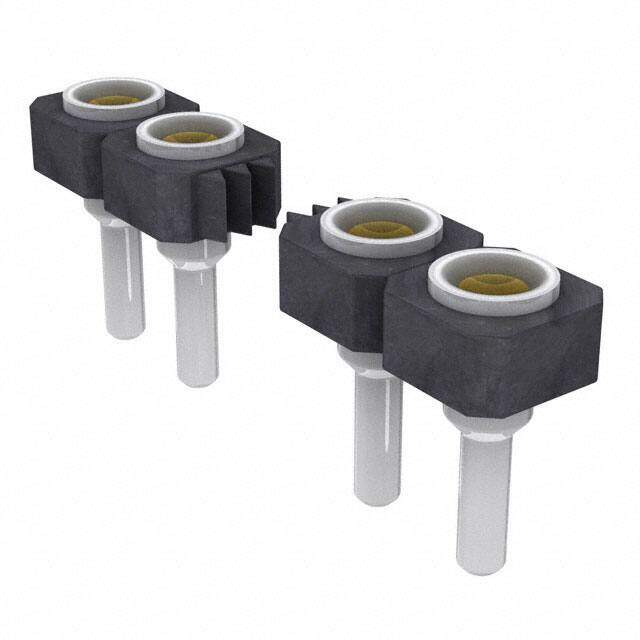

SL-105-T-12 image
Favorite
SL-105-T-12 image
Favorite

SL-105-T-12

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT .100 5POS GOLD PCB
PDF
/
Buying Options
Total Price: USD $1.96
Unit Price: USD $1.957617
≥1 USD $1.957617
≥10 USD $1.84681
≥100 USD $1.742268
≥500 USD $1.643653
≥1000 USD $1.550618
Inventory: 3530
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Width 2.54mm
Length 12.7mm

Technical

Max Current Rating 1A
Contact Resistance 10mOhm
Housing Color Black
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Length - Post 0.095 2.41mm
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.095 2.41mm
Depth 2.54mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Gender Female
Number of Rows 1
Number of Positions 5
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SL
Published 2008
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Polyester
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper

Supply Chain

Factory Lead Time 1 Weeks
