SL-102-TT-19
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

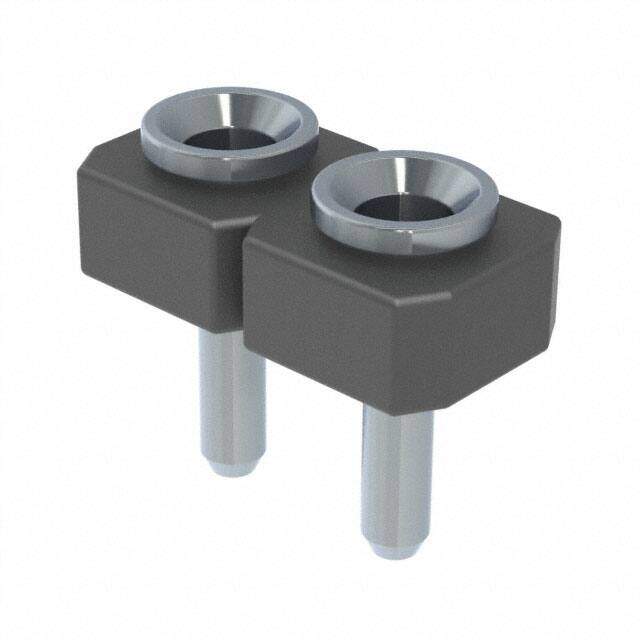

SAMTEC SL-102-TT-19 Board-To-Board Connector, Vertical, SL Series, 2 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.3168
≥100 USD $0.2552
≥500 USD $0.22
≥1000 USD $0.1672
≥3000 USD $0.154
Inventory: 802
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2013
Series SL
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 2
Number of Rows 1
Additional Feature LOW PROFILE
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.050 1.27mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.082 2.08mm
Contact Resistance 10mOhm
Max Current Rating 1A
Dimensions
Length 5.08mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
