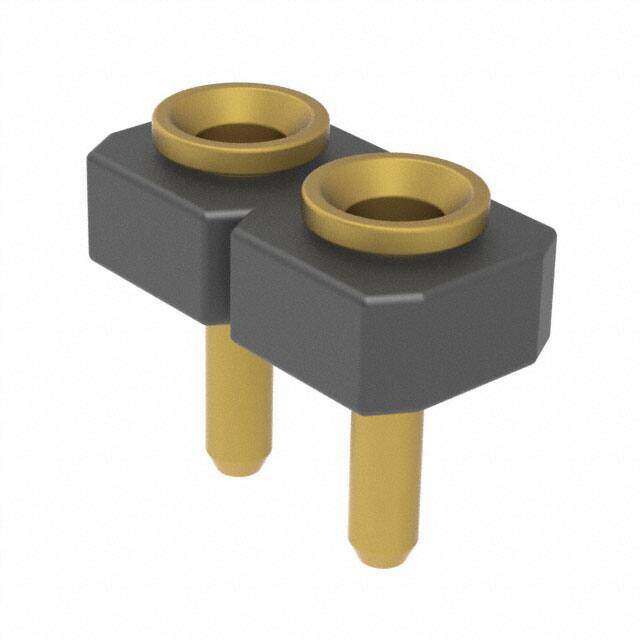

SL-102-G-39
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
LOW PROFILE LOW INSERTION FORCE Rectangular Connector Header
PDF
/
Inventory: 1190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Mating Information MULTIPLE MATING PARTS AVAILABLE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.050 1.27mm
Total Number of Contacts 2
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE, LOW INSERTION FORCE
Gender Female
Number of Rows 1
Number of Positions 2
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SL
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
