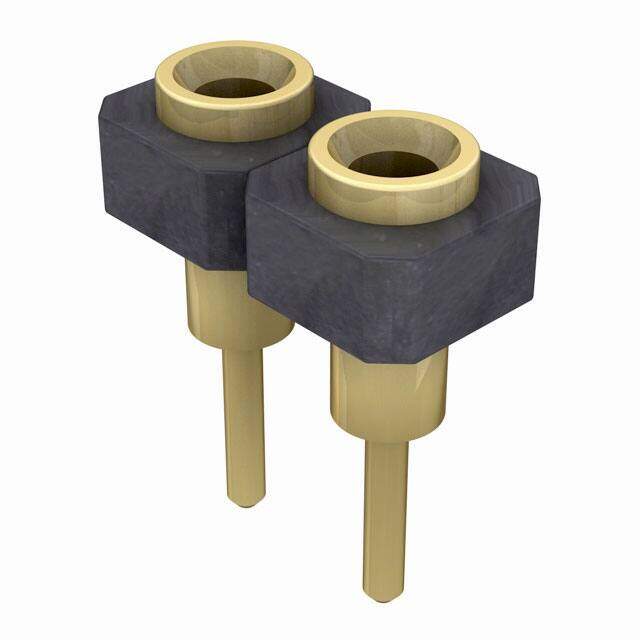

SL-102-G-11
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT .100 2POS GOLD PCB
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.76032
≥100 USD $0.683144
≥500 USD $0.558923
≥1000 USD $0.496813
≥3000 USD $0.434711
Inventory: 1304
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series SL
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 2
Number of Rows 1
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 2.54mm
Insulation Height 0.132 3.35mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Contact Length - Post 0.108 2.75mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Contact Resistance 10mOhm
Max Current Rating 1A
Dimensions
Length 5.08mm
Width 2.54mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
