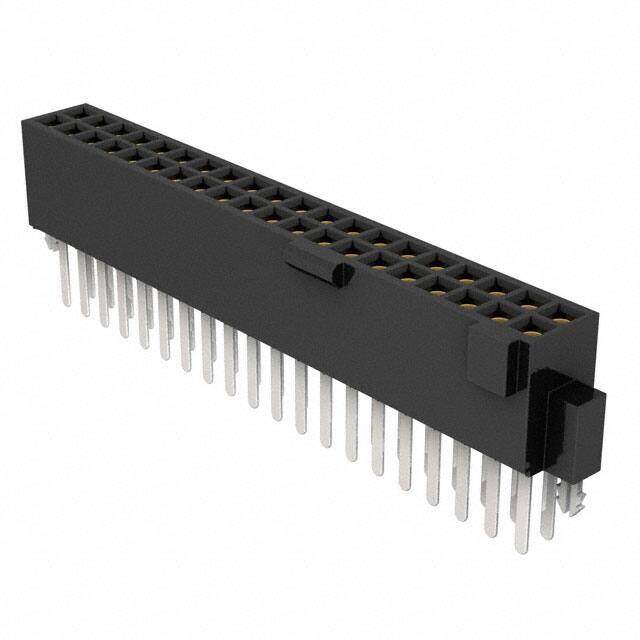

SFML-120-T2-S-D-LC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 40 POS 1.27mm Solder ST SMD TIGER EYE? Automotive Tube
PDF
/
Buying Options
Total Price: USD $8.21
Unit Price: USD $8.2104
≥1 USD $8.2104
≥10 USD $7.5944
≥100 USD $7.1808
≥500 USD $6.9168
≥1000 USD $5.4736
≥3000 USD $4.9984
Inventory: 3348
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Contact Material Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2008
Series Tiger Eye? SFML
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Withdrawl Force-Min .417 N
Insertion Force-Max .556 N
Durability 10000 Cycles
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
Mating Contact Pitch 0.05 inch
Contact Resistance 15mOhm
Body Breadth 0.145 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.185 4.70mm
Depth 4.19mm
Orientation Straight
Total Number of Contacts 40
Current Rating (Amps) 3.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Additional Feature ROHS COMPLIANT
Voltage - Rated 250VAC
Number of Rows 2
Number of Positions 40
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Length 29.34mm
