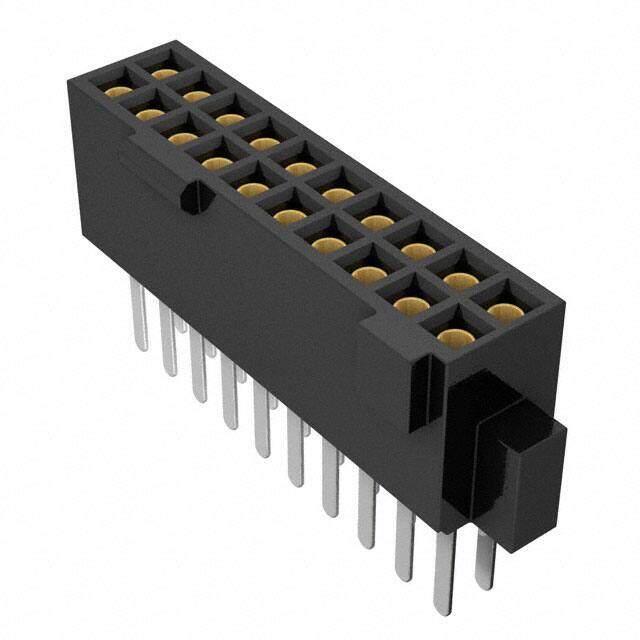

SFML-110-01-S-D image
Favorite
SFML-110-01-S-D image
Favorite

SFML-110-01-S-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 20POS 0.05 GOLD PCB
PDF
/
Buying Options
Total Price: USD $5.96
Unit Price: USD $5.9576
≥1 USD $5.9576
≥10 USD $5.3856
≥100 USD $5.0072
≥500 USD $4.7696
≥1000 USD $3.757618
≥3000 USD $3.4144
Inventory: 682
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer

Technical

Operating Temperature -55°C~125°C
Packaging Tube
Published 2006
Series Tiger Eye? SFML
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Voltage - Rated 250VAC
Fastening Type Locking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.2A per Contact
Orientation Straight
Depth 3.68mm
Insulation Height 0.180 4.57mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Voltage - Rated AC 350V
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.120 3.05mm
Contact Finish - Post Tin
Contact Resistance 15mOhm
Max Voltage Rating (AC) 250V

Dimensions

Length 16.64mm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
