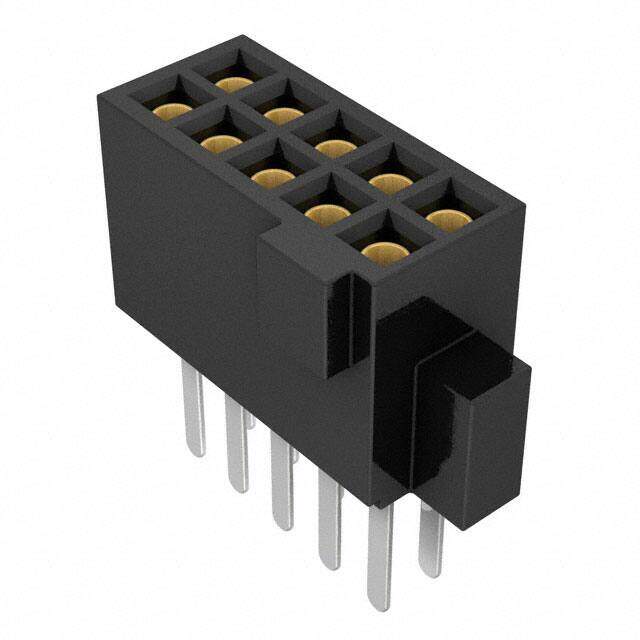

SFML-105-01-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 10 POS 1.27mm Solder ST Thru-Hole Tube
PDF
/
Buying Options
Total Price: USD $3.09
Unit Price: USD $3.0888
≥1 USD $3.0888
≥10 USD $2.5256
≥100 USD $2.1384
≥500 USD $1.9008
≥1000 USD $1.496009
≥3000 USD $1.364009
Inventory: 1916
Minimum: 1
-
+
Technical Details
Technical
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.120 3.05mm
Contact Finish - Post Tin
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.180 4.57mm
Current Rating (Amps) 3.2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Voltage - Rated 250VAC
Gender Female
Number of Rows 2
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Tiger Eye? SFML
Packaging Tube
Operating Temperature -55°C~125°C
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material PHOSPHOR BRONZE/BERYLLIUM COPPER
Supply Chain
Factory Lead Time 3 Weeks
