SFMH-115-02-L-D-LC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

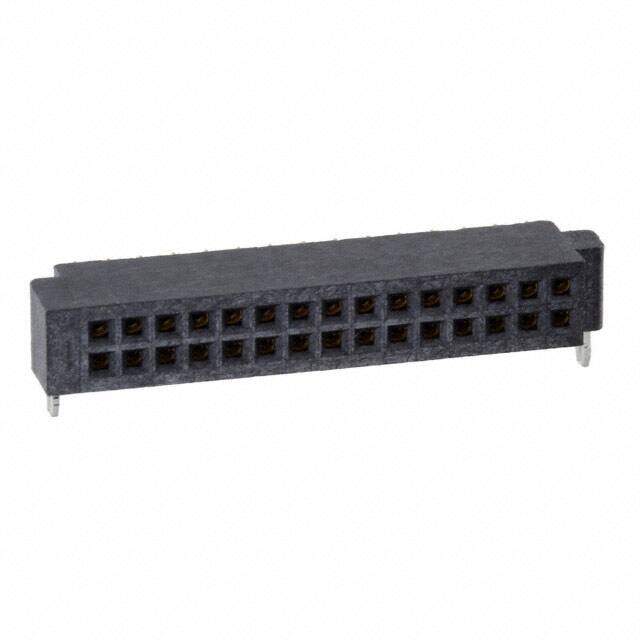

SAMTEC SFMH-115-02-L-D-LC Board-To-Board Connector, SFMH Series, 30 Contacts, Receptacle, 1.27 mm, Solder, 2 Rows
PDF
/
Buying Options
Total Price: USD $7.8
Unit Price: USD $7.7968
≥1 USD $7.7968
≥10 USD $7.2072
≥100 USD $6.8112
≥500 USD $6.5648
≥1000 USD $6.138
Inventory: 80
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2012
Series Tiger Eye? SFMH
JESD-609 Code e4
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 30
Number of Rows 2
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 30
Orientation Straight
Depth 6.22mm
Insulation Height 0.135 3.43mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Body Breadth 0.135 inch
Contact Resistance 15mOhm
Mating Contact Pitch 0.05 inch
Max Current Rating 2A
Polarization Key POLARIZED HOUSING
Insertion Force-Max .695 N
Dimensions
Length 21.97mm
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post Flash
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
