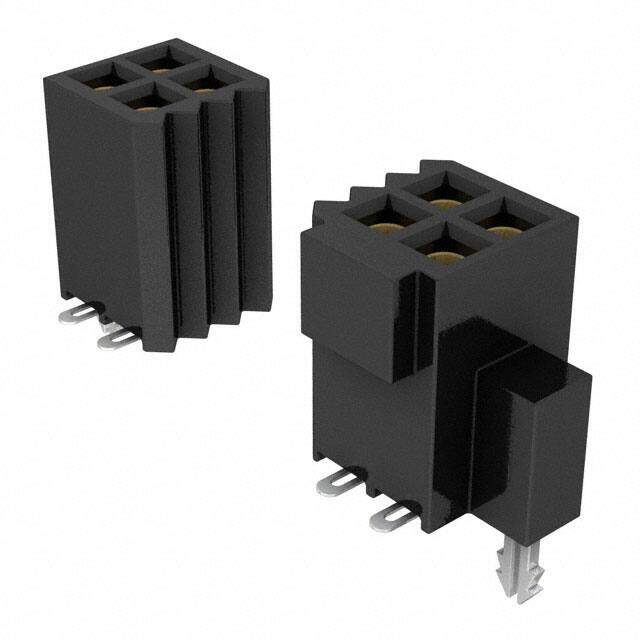

SFC-120-T2-F-D-LC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CON SOCKET 40 POS 1.27MM ST SMD
PDF
/
Inventory: 1608
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2016
Series Tiger Eye? SFC
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 40
Number of Rows 2
Gender Female
Voltage - Rated 350VAC
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.1A per Contact
Total Number of Contacts 40
Orientation Straight
Depth 3.68mm
Insulation Height 0.180 4.57mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.145 inch
Housing Color Black
Contact Resistance 15mOhm
Mating Contact Pitch 0.05 inch
Max Voltage Rating (AC) 350V
Polarization Key LEFT
Insertion Force-Max .695 N
Withdrawl Force-Min .556 N
Dimensions
Length 29.34mm
Plating Thickness 3μin
Contact Finish Thickness - Mating 3.00μin 0.076μm
Compliance
RoHS Status ROHS3 Compliant
