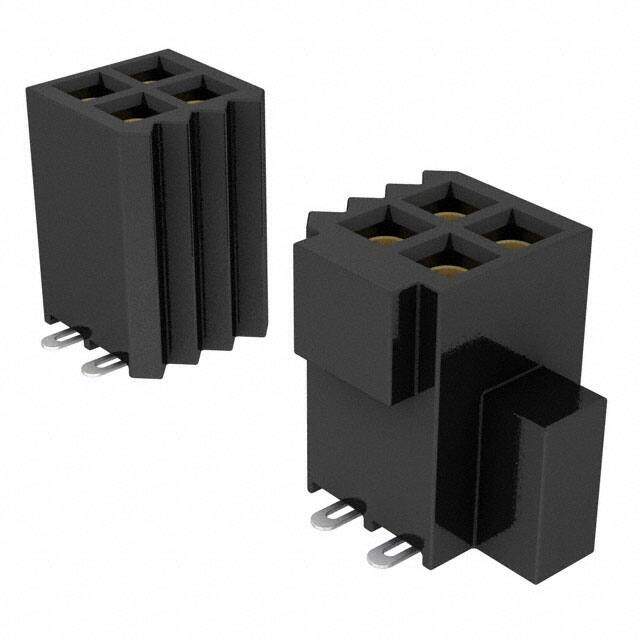

SFC-110-T2-L-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 20 POS 1.27mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $3.57
Unit Price: USD $3.5728
≥1 USD $3.5728
≥10 USD $3.2296
≥100 USD $3.0008
≥500 USD $2.86
≥1000 USD $2.389622
Inventory: 126
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 16.64mm
Technical
Withdrawl Force-Min .556 N
Insertion Force-Max .695 N
Polarization Key LEFT
Max Voltage Rating (AC) 350V
Mating Contact Pitch 0.05 inch
Contact Resistance 15mOhm
Body Breadth 0.145 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.180 4.57mm
Depth 4.19mm
Orientation Straight
Total Number of Contacts 20
Current Rating (Amps) 3.1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TIGER EYE SYSTEM, TIGER EYE L.I.T.E, POLARIZED
Voltage - Rated 350VAC
Number of Rows 2
Number of Positions 20
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Tiger Eye? SFC
Published 2013
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Mounting Option 1 LOCKING
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
