SEML-115-02-03.0-H-D-WT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

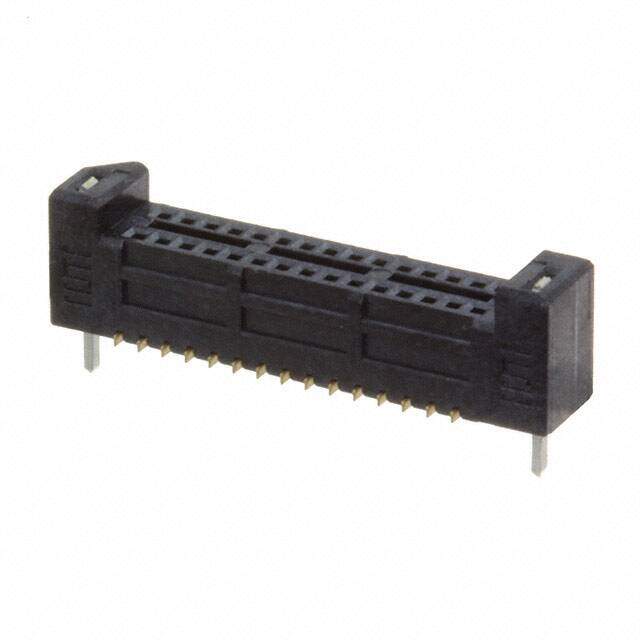

SAMTEC SEML-115-02-03.0-H-D-WT Board-To-Board Connector, SEML Series, 30 Contacts, Receptacle, 0.8 mm, Solder, 2 Rows
PDF
/
Buying Options
Total Price: USD $5.75
Unit Price: USD $5.7464
≥1 USD $5.7464
≥10 USD $5.39
Inventory: 184
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Body Depth 0.177 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Row Spacing - Mating 0.125 (3.18mm)
Body Length or Diameter 0.65 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.031 0.80mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.177 4.50mm
Terminal Pitch 0.8mm
Total Number of Contacts 30
Current Rating (Amps) 2.6A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Friction Lock
Additional Feature E.L.P., TIGER EYE CONTACT
Number of Rows 2
Number of Positions 30
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention
JESD-609 Code e4
Series Tiger Eye? SEML
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
