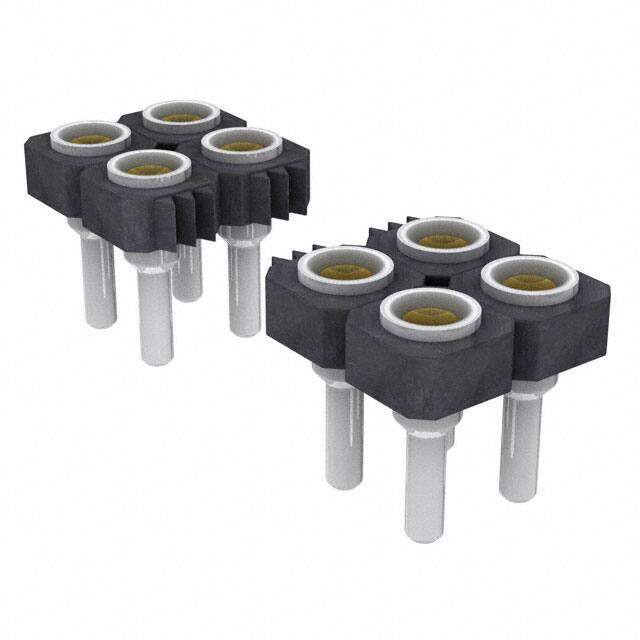

SDL-116-T-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
LOW PROFILE Rectangular Connector Female Socket
PDF
/
Buying Options
Total Price: USD $10.52
Unit Price: USD $10.520271
≥1 USD $10.520271
≥10 USD $9.924781
≥100 USD $9.363003
≥500 USD $8.833022
≥1000 USD $8.333042
Inventory: 9028
Minimum: 1
-
+
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2008
Series SDL
JESD-609 Code e4
Pbfree Code yes
Part Status Discontinued
Termination Solder
Connector Type Receptacle
Number of Positions 32
Number of Rows 2
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Insulation Height 0.095 2.41mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.095 2.41mm
Lead Pitch 2.54mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Contact Resistance 10mOhm
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
