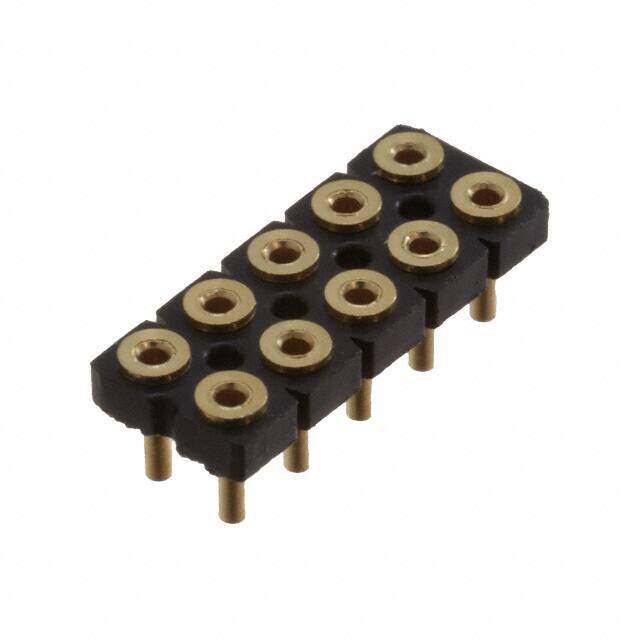

SDL-105-G-19 image
Favorite
SDL-105-G-19 image
Favorite

SDL-105-G-19

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description SAMTEC SDL-105-G-19 Board-To-Board Connector, Vertical, SDL Series, 10 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.5552
≥1 USD $3.5552
≥10 USD $3.212
≥100 USD $2.9832
≥500 USD $2.8424
≥1000 USD $2.775062
Inventory: 87
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Beryllium Copper
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polyester

Technical

Operating Temperature -55°C~125°C
Packaging Tube
Published 2013
Series SDL
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 10
Number of Rows 2
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 5.08mm
Insulation Height 0.083 2.10mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.082 2.08mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Resistance 10mOhm
Max Current Rating 1A

Dimensions

Length 12.7mm
Contact Finish Thickness - Mating 10.0μin 0.25μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
