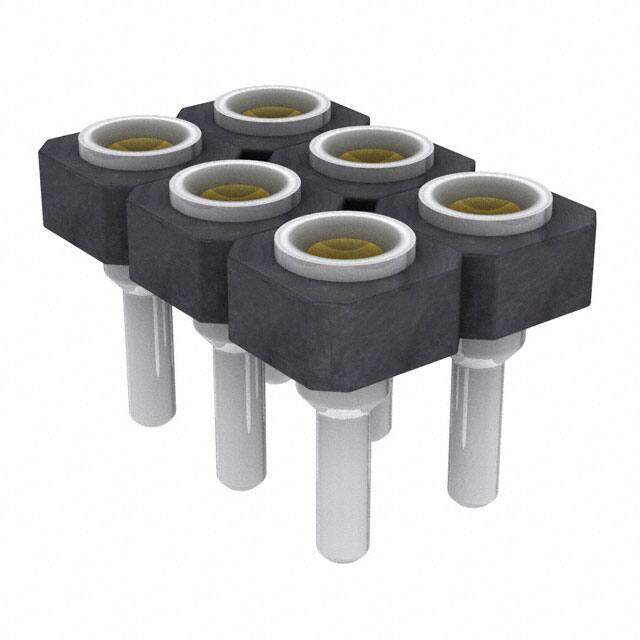

SDL-103-T-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 2079
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series SDL
JESD-609 Code e4
Pbfree Code yes
Part Status Discontinued
Termination Solder
Connector Type Receptacle
Number of Positions 6
Number of Rows 2
Gender Female
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Insulation Height 0.095 2.41mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.095 2.41mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Contact Resistance 10mOhm
Max Current Rating 1A
Dimensions
Height 1.27mm
Length 7.62mm
Width 5.08mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
