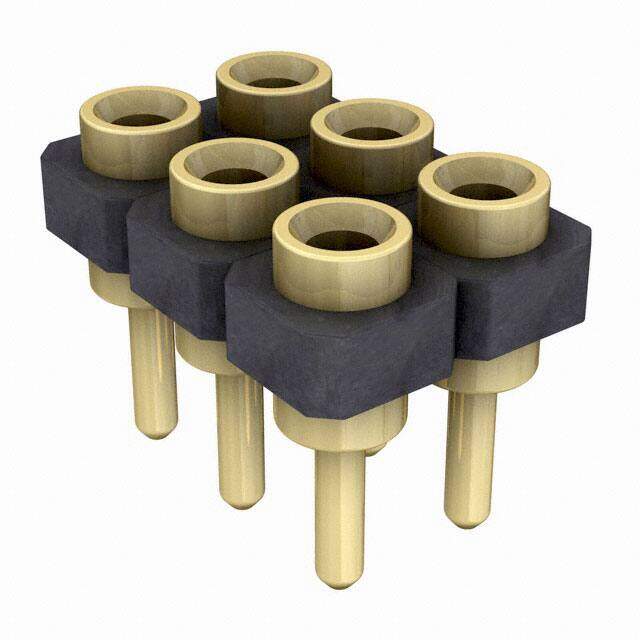

SDL-103-G-10 image
Favorite
SDL-103-G-10 image
Favorite

SDL-103-G-10

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description SAMTEC SDL-103-G-10 Board-To-Board Connector, Vertical, SDL Series, 6 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.379549
≥1 USD $2.379549
≥10 USD $2.244854
≥100 USD $2.117791
≥500 USD $1.997915
≥1000 USD $1.884827
Inventory: 3018
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 5.08mm
Length 7.62mm
Height 1.27mm

Technical

Housing Color Black
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Length - Post 0.108 2.75mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.122 3.10mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Number of Rows 2
Number of Positions 6
Connector Type Receptacle
Termination Solder
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e4
Series SDL
Published 2008
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper

Supply Chain

Factory Lead Time 2 Weeks
