SDL-102-T-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

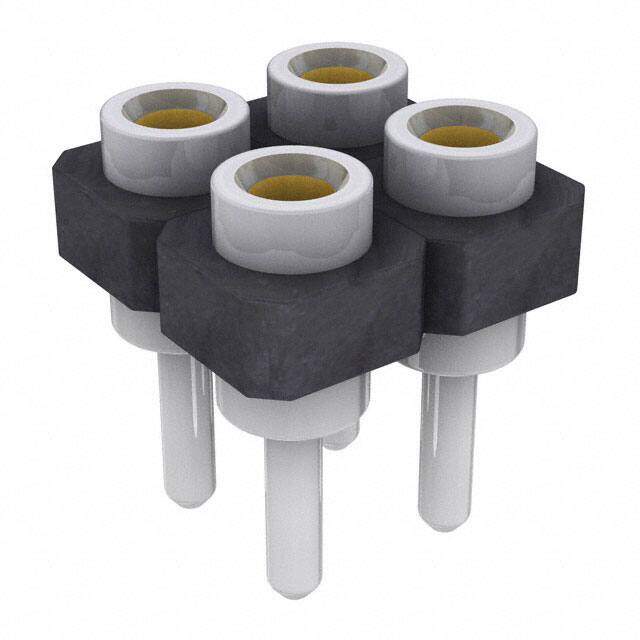

SAMTEC SDL-102-T-10Board-To-Board Connector, Dual, Through Hole, Receptacle, 4 Contacts, 2.54 mm, Gold Plated Contacts
PDF
/
Inventory: 5111
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Contact Resistance 10mOhm
Housing Color Black
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Length - Post 0.108 2.75mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.122 3.10mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW PROFILE
Number of Rows 2
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Series SDL
Published 2008
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 2 Weeks
