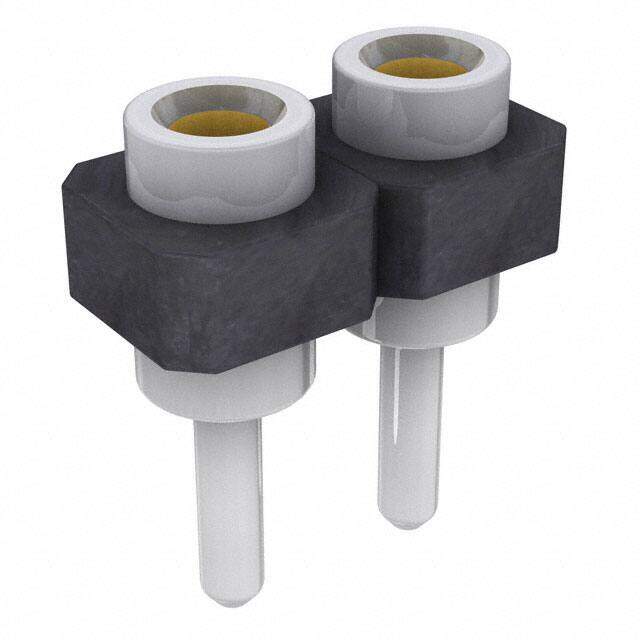

SDL-101-T-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
LOW PROFILE Rectangular Connector Header
PDF
/
Inventory: 2878
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series SDL
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Termination Solder
Connector Type Receptacle
Number of Positions 2
Number of Rows 2
Gender Female
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Insulation Height 0.122 3.10mm
Style Board to Board
Number of Positions Loaded All
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.108 2.75mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Dimensions
Height 1.27mm
Length 2.54mm
Width 5.08mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
