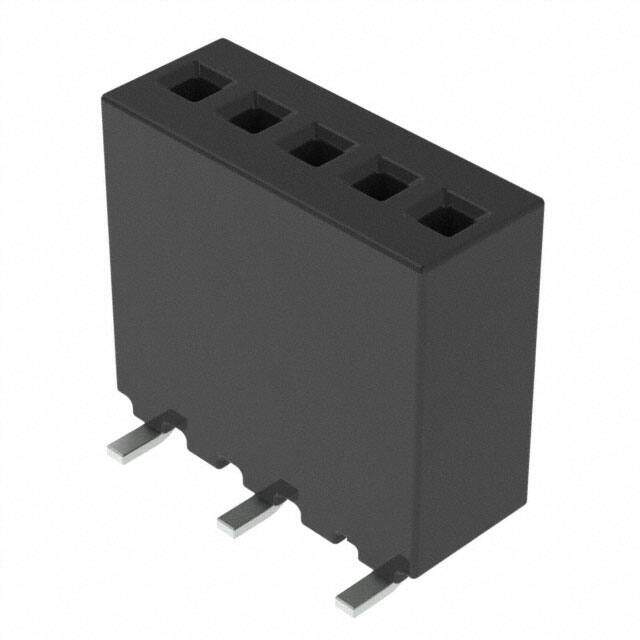

RSM-105-02-S-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 5 POS 1.27mm Solder ST SMD Tube
PDF
/
Inventory: 8127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2014
Series RSM
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 5
Number of Rows 1
Gender Female
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.1A per Contact
Total Number of Contacts 5
Orientation Straight
Depth 2.54mm
Insulation Height 0.240 6.10mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern STAGGERED
Contact Resistance 10mOhm
PCB Contact Row Spacing 3.048 mm
Dimensions
Length 6.6mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
