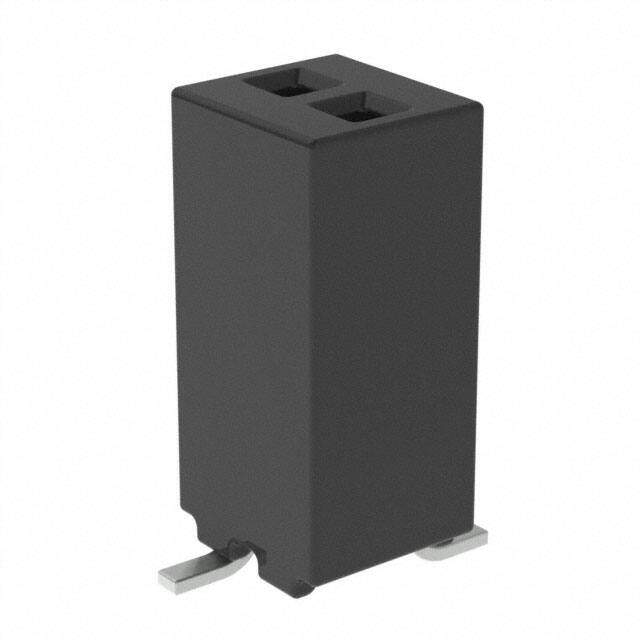

RSM-102-02-S-S-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 2 POS 1.27mm Solder ST SMD T/R
PDF
/
Inventory: 9294
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Plating Thickness 30μin
Technical
PCB Contact Row Spacing 3.048 mm
Mating Contact Pitch 0.05 inch
Insulation Resistance 5000000000Ohm
UL Flammability Code 94V-0
PCB Contact Pattern STAGGERED
Contact Finish - Post Tin
Number Of PCB Rows 2
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.240 6.10mm
Total Number of Contacts 2
Current Rating (Amps) 3.1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TAPE AND REEL
Gender Female
Number of Rows 1
Number of Positions 2
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series RSM
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
