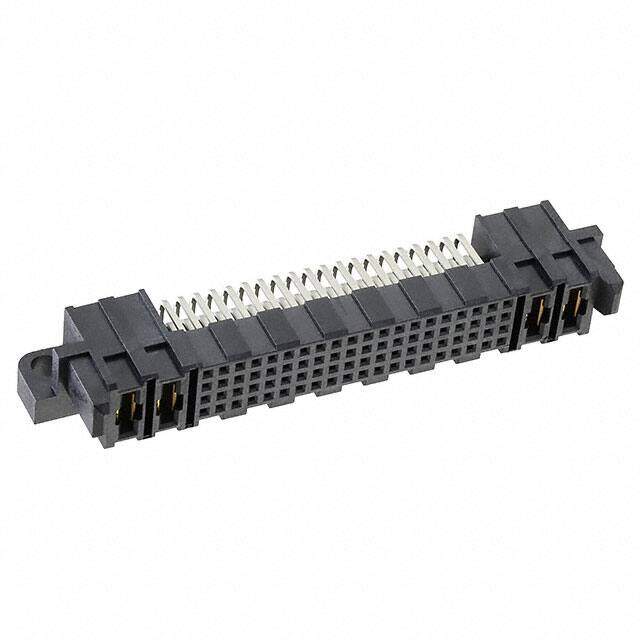

MPSC-02-80-02-01-01-L-RA-SD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Mini-Power Terminal Strip SKT 4Power/80Signal POS Solder RA Thru-Hole 104 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $12.04
Unit Price: USD $12.0384
≥1 USD $12.0384
≥10 USD $11.396
≥100 USD $10.9736
≥500 USD $10.7008
≥1000 USD $8.870488
≥3000 USD $8.316
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Empty Shell NO
Contact Finish - Post Tin
Contact Length - Post 0.107 2.71mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.400 10.16mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Female
Number of Rows 4
Number of Positions 84 (80 + 4 Power)
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mounting Flange, Mounting Hardware
JESD-609 Code e3
Series PowerStrip? 30 MPSC
Published 2016
Packaging Tray
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy, Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
