MMS-139-02-L-SH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

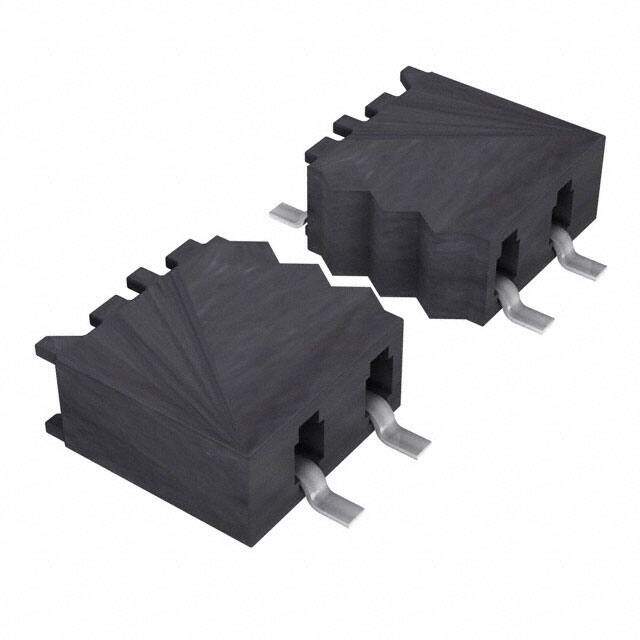

SAMTEC MMS-139-02-L-SH Board-To-Board Connector, Horizontal, MMS Series, 39 Contacts, Receptacle, 2 mm, Through Hole
PDF
/
Inventory: 8330
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2015
Series MMS
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 39
Number of Rows 1
Additional Feature MOUNT, HORIZ
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3.9A per Contact
Total Number of Contacts 39
Insulation Height 0.085 2.15mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Body Breadth 0.079 inch
Housing Color Black
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
PCB Contact Row Spacing 6.477 mm
Dimensions
Height 2.16mm
Length 78mm
Width 4.5mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
