MMS-124-01-L-SV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

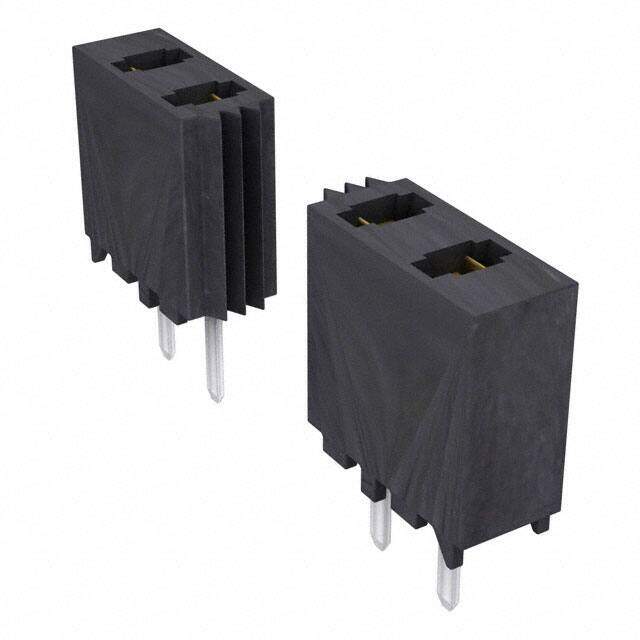

SAMTEC MMS-124-01-L-SV Board-To-Board Connector, Vertical, MMS Series, 24 Contacts, Receptacle, 2 mm, Through Hole, 1 Rows
PDF
/
Inventory: 8624
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 2mm
Length 48.254mm
Technical
Polarization Key POLARIZED HOUSING
Max Current Rating 2A
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Housing Color Black
Body Breadth 0.079 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 2mm
Number Of PCB Rows 1
Contact Length - Post 0.115 2.92mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.175 4.45mm
Depth 2mm
Orientation Straight
Current Rating (Amps) 3.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TOP ENTRY; BOTTOM ENTRY
Number of Rows 1
Number of Positions 24
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series MMS
Published 2000
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 2 Weeks
