MMS-105-01-L-SH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

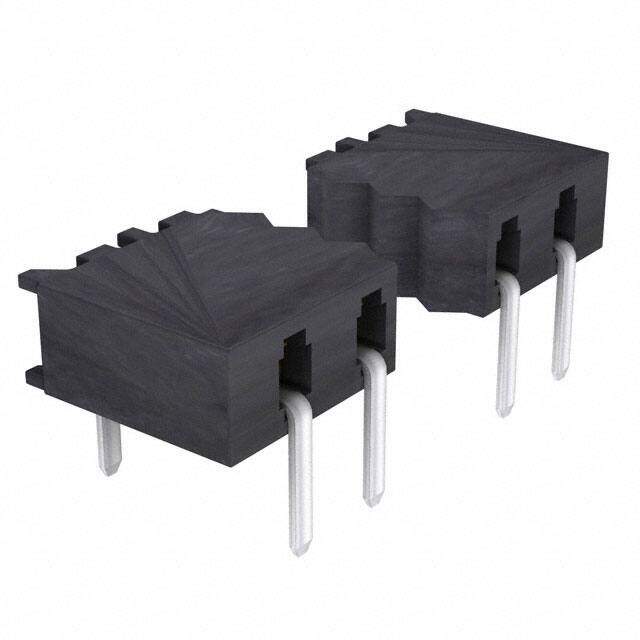

SAMTEC MMS-105-01-L-SH Board-To-Board Connector, Horizontal, MMS Series, 5 Contacts, Receptacle, 2 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $2.93
Unit Price: USD $2.933884
≥1 USD $2.933884
≥10 USD $2.767815
≥100 USD $2.611144
≥500 USD $2.463341
≥1000 USD $2.323905
Inventory: 3811
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 4.45mm
Length 10.56mm
Technical
PCB Contact Row Spacing 4.699 mm
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Housing Color Black
Body Breadth 0.079 inch
Contact Finish - Post Tin
Lead Pitch 2mm
Number Of PCB Rows 2
Contact Length - Post 0.120 3.05mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.079 2.00mm
Depth 4.7mm
Orientation Right Angle
Current Rating (Amps) 3.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature MOUNT, HORIZ
Number of Rows 1
Number of Positions 5
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e3
Series MMS
Published 2000
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 2 Weeks
Alternative Model
