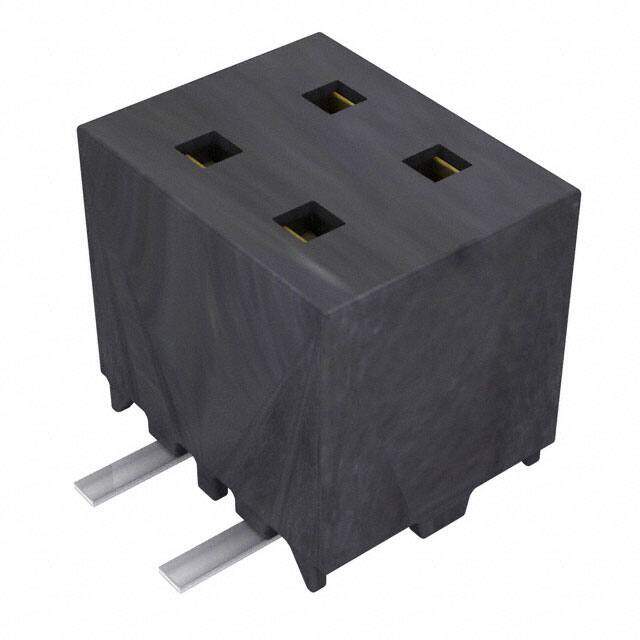

MMS-102-02-L-DV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
SAMTEC MMS-102-02-L-DV Board-To-Board Connector, Vertical, MMS Series, 4 Contacts, Receptacle, 2 mm, Surface Mount, 2 Rows
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.96888
≥100 USD $0.870144
≥500 USD $0.71192
≥1000 USD $0.632826
≥3000 USD $0.553722
Inventory: 106
Minimum: 1
-
+
Technical Details
Technical
Reference Standard UL, CSA
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.177 4.50mm
Total Number of Contacts 4
Current Rating (Amps) 3.9A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature TOP ENTRY; BOTTOM ENTRY
Number of Rows 2
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series MMS
Published 2000
Packaging Bulk
Operating Temperature -55°C~125°C
Withdrawl Force-Min .6116 N
PCB Contact Row Spacing 5.3086 mm
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.079 inch
Contact Resistance 10mOhm
Body Depth 0.177 inch
Housing Color Black
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Lead Pitch 2mm
Number Of PCB Rows 2
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 2 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Width 4mm
Length 4mm
Height 4.5mm
