MLE-135-01-G-DV

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description SAMTEC MLE-135-01-G-DV Board-To-Board Connector, MLE Series, Surface Mount, Receptacle, 70 Contacts, 1 mm
PDF
/
Buying Options
Total Price: USD $12.43
Unit Price: USD $12.430411
≥1 USD $12.430411
≥10 USD $11.726808
≥100 USD $11.063026
≥500 USD $10.436812
≥1000 USD $9.846058
Inventory: 4293
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

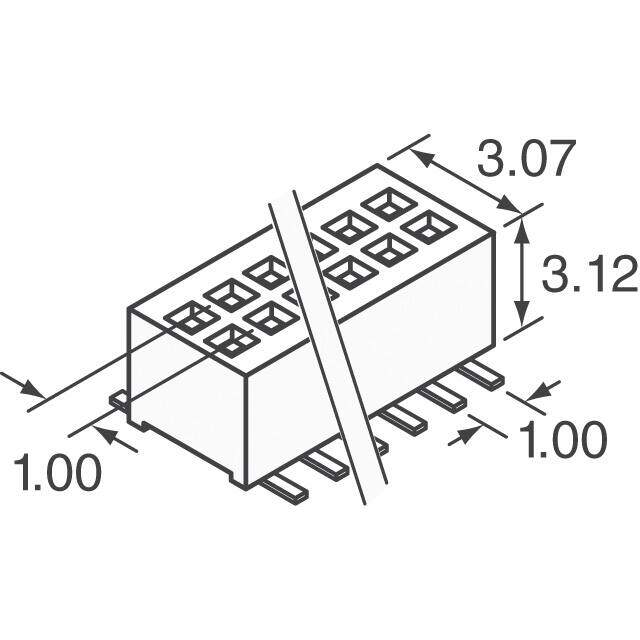

Dimensions

Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 3.07mm
Length 35.2mm
Height 3.12mm

Technical

Housing Color Black
Number of Contacts 70
Lead Pitch 1mm
Row Spacing - Mating 0.039 (1.00mm)
Insulation Color Black
Pitch - Mating 0.039 1.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.130 3.30mm
Pitch 990.6μm
Current Rating (Amps) 2.9A per Contact
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 310VAC
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 70
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Series MLE
Published 2012
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Beryllium Copper
