IPS1-115-01-S-D-VS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

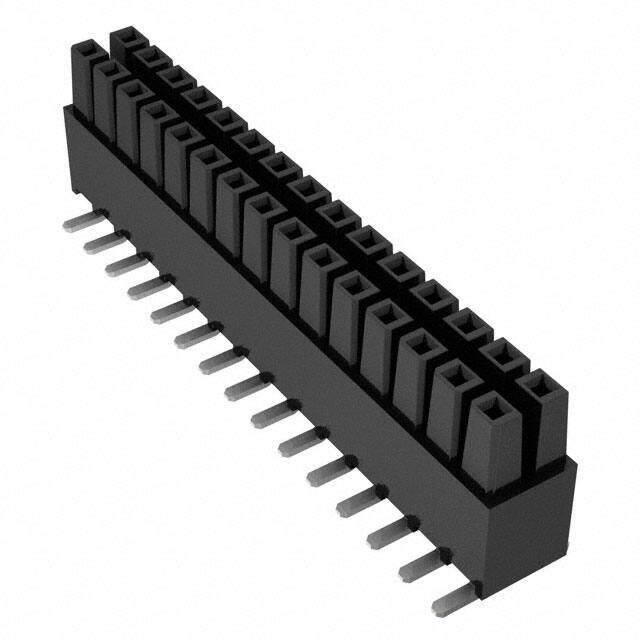

SAMTEC IPS1-115-01-S-D-VS Board-To-Board Connector, IPS1 Series, 30 Contacts, Receptacle, 2.54 mm, Surface Mount, 2 Rows
PDF
/
Buying Options
Total Price: USD $7.09
Unit Price: USD $7.091751
≥1 USD $7.091751
≥10 USD $6.690334
≥100 USD $6.311629
≥500 USD $5.954372
≥1000 USD $5.617329
Inventory: 9021
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Width 5.08mm
Length 38.6mm
Height 6.35mm
Technical
Empty Shell NO
Housing Color Black
Contact Finish - Post Tin
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Orientation Straight
Total Number of Contacts 30
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 775VAC 1095VDC
Number of Rows 2
Number of Positions 30
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini Mate? IPS1
Published 2010
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
