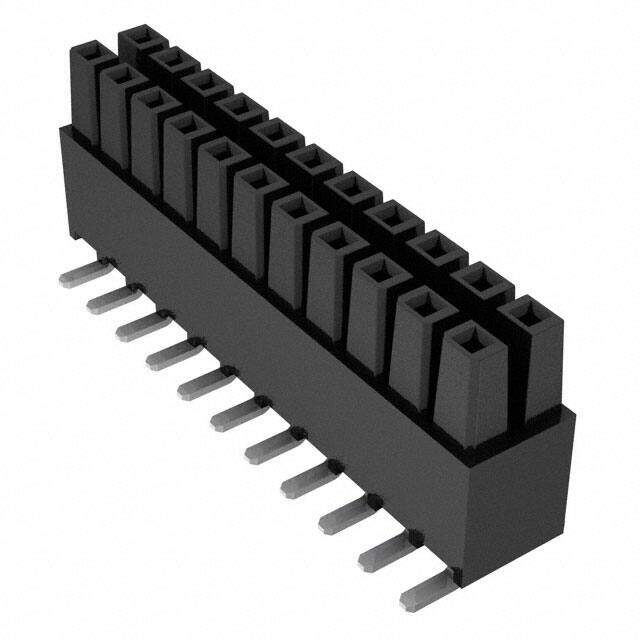

IPS1-111-01-S-D-VS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Isolated Power Socket Strip SKT 22 POS 2.54mm Solder ST SMD 22 Terminal 1 Port Tube
PDF
/
Buying Options
Total Price: USD $4.34
Unit Price: USD $4.3384
≥1 USD $4.3384
≥10 USD $3.9248
≥100 USD $3.6432
≥500 USD $3.476
≥1000 USD $3.234
Inventory: 68
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series Mini Mate? IPS1
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 22
Number of Rows 2
Gender Female
Voltage - Rated 775VAC 1095VDC
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 22
Orientation Straight
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
