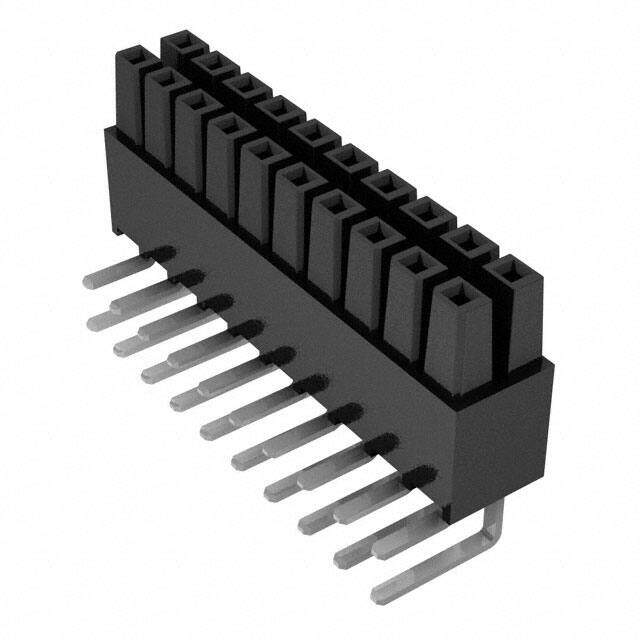

IPS1-110-01-S-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Isolated Power Socket Strip SKT 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port Tube
PDF
/
Buying Options
Total Price: USD $4.53
Unit Price: USD $4.532
≥1 USD $4.532
≥10 USD $4.092
≥100 USD $3.8016
≥500 USD $3.6256
≥1000 USD $2.763218
≥3000 USD $2.472818
Inventory: 740
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 25.78mm
Technical
Max Voltage Rating (DC) 777V
Number of Ports 1
Max Voltage Rating (AC) 550V
Empty Shell NO
Housing Color Black
Contact Finish - Post Tin
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Voltage - Rated AC 550V
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.195 4.95mm
Depth 12.57mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature SHROUDED
Voltage - Rated 775VAC 1095VDC
Number of Rows 2
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini Mate? IPS1
Published 2001
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
