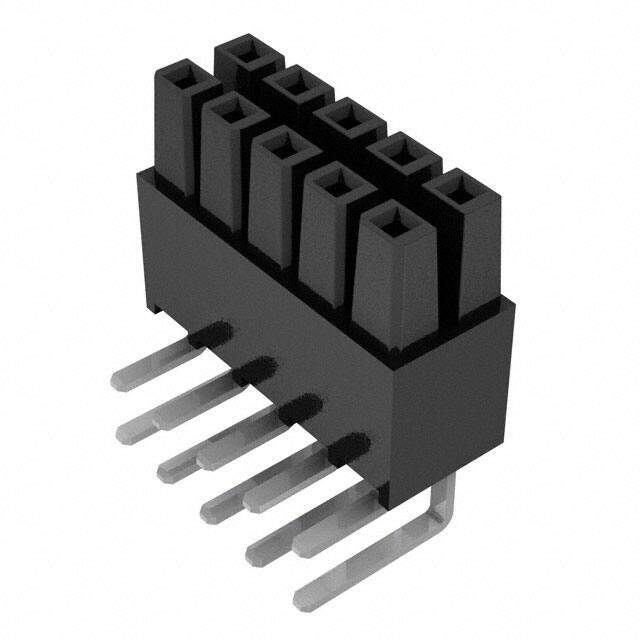

IPS1-105-01-S-D-RA

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 10POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $3.4
Unit Price: USD $3.3968
≥1 USD $3.3968
≥10 USD $3.0712
≥100 USD $2.8512
≥500 USD $2.7192
≥1000 USD $2.076818
≥3000 USD $1.856809
Inventory: 1051
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 13.08mm
Height 4.95mm

Technical

Max Voltage Rating (DC) 777V
Number of Ports 1
Max Current Rating 5.2A
Max Voltage Rating (AC) 550V
Housing Color Black
Contact Finish - Post Tin
Contact Length - Post 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Voltage - Rated AC 550V
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.195 4.95mm
Depth 12.57mm
Orientation Right Angle
Option GENERAL PURPOSE
Contact Type Female Socket
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 775VAC 1095VDC
Number of Rows 2
Number of Positions 10
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Mini Mate? IPS1
Published 2001
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
