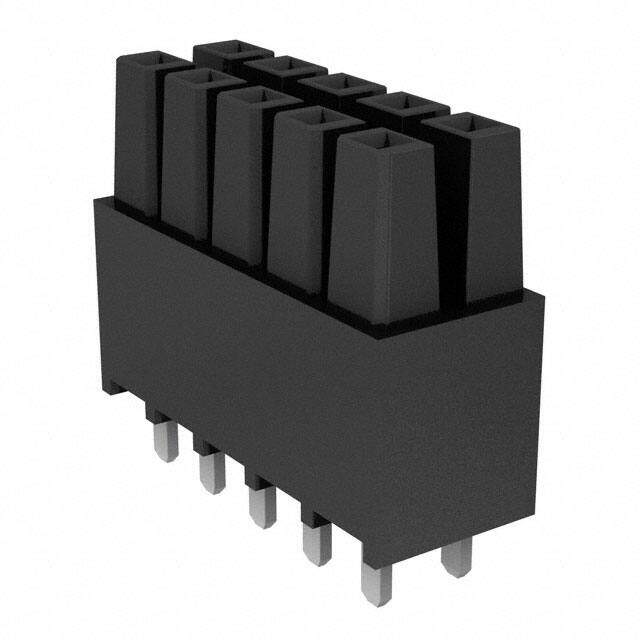

IPS1-105-01-S-D

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT .100" 10POS DUAL PCB
PDF
/
Buying Options
Total Price: USD $4.01
Unit Price: USD $4.0128
≥1 USD $4.0128
≥10 USD $3.2736
≥100 USD $2.7808
≥500 USD $2.472818
≥1000 USD $1.883209
≥3000 USD $1.771
Inventory: 1003
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2001
Series Mini Mate? IPS1
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 10
Number of Rows 2
Voltage - Rated 775VAC 1095VDC
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 4.95mm
Insulation Height 0.335 8.51mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Voltage - Rated AC 550V
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.100 2.54mm
Contact Finish - Post Tin
Housing Color Black
Empty Shell NO
Max Voltage Rating (AC) 550V
Number of Ports 1
Max Voltage Rating (DC) 777V
Insertion Force-Max .834 N
Withdrawl Force-Min .695 N

Dimensions

Length 13.08mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 30.0μin 0.76μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
