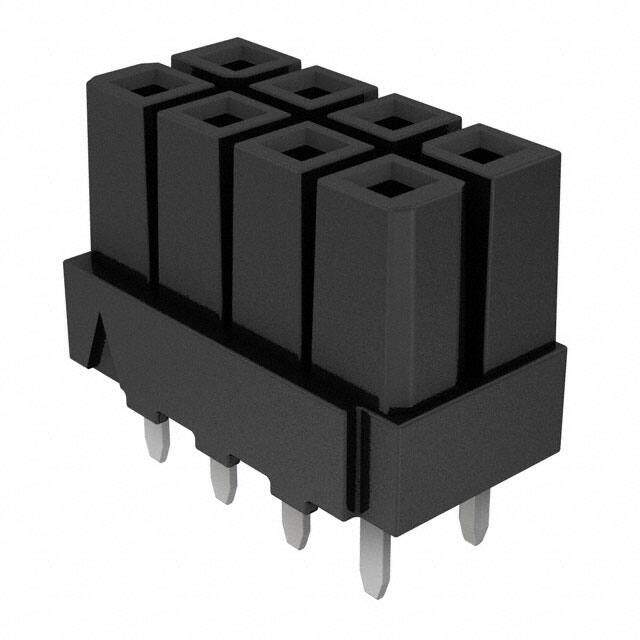

IPBS-104-01-T-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
POLARIZED SHROUDED Rectangular Connector Female Socket
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.2176
≥100 USD $1.8832
≥500 USD $1.672
≥1000 USD $1.562
Inventory: 126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2012
Series Power Mate? IPBS
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Number of Rows 2
Gender Male
Voltage - Rated 400VAC 565VDC
Additional Feature POLARIZED, SHROUDED
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 9.6mm
Insulation Height 0.480 12.20mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Black
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.155 3.94mm
Empty Shell NO
Max Voltage Rating (AC) 725V
Number of Ports 1
Dimensions
Length 17.78mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
