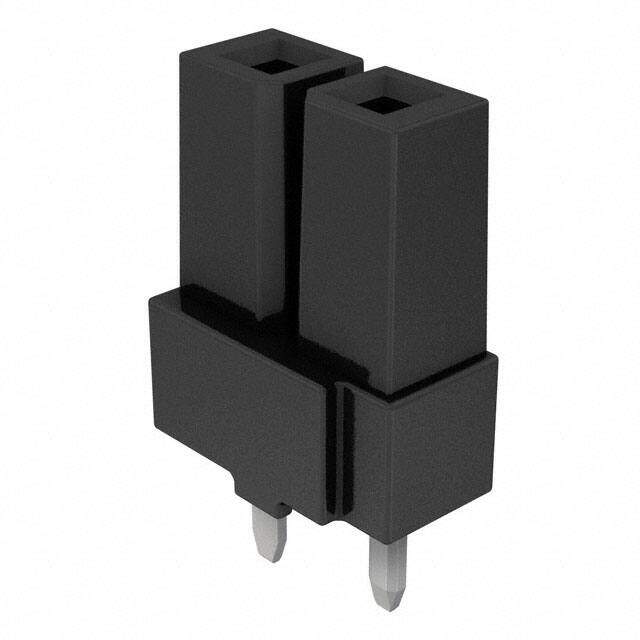

IPBS-102-01-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Buying Options
Total Price: USD $1.47
Unit Price: USD $1.4696
≥1 USD $1.4696
≥10 USD $1.1968
≥100 USD $1.012
≥500 USD $0.9064
≥1000 USD $0.7128
≥3000 USD $0.642409
Inventory: 1549
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 9.4mm
Technical
Max Voltage Rating (AC) 725V
Empty Shell NO
Contact Length - Post 0.155 3.94mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.480 12.20mm
Depth 5.41mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.30
Voltage - Rated 400VAC 565VDC
Gender Male
Number of Rows 1
Number of Positions 2
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Power Mate? IPBS
Published 2012
Packaging Tube
Operating Temperature -55°C~105°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 8 Weeks
