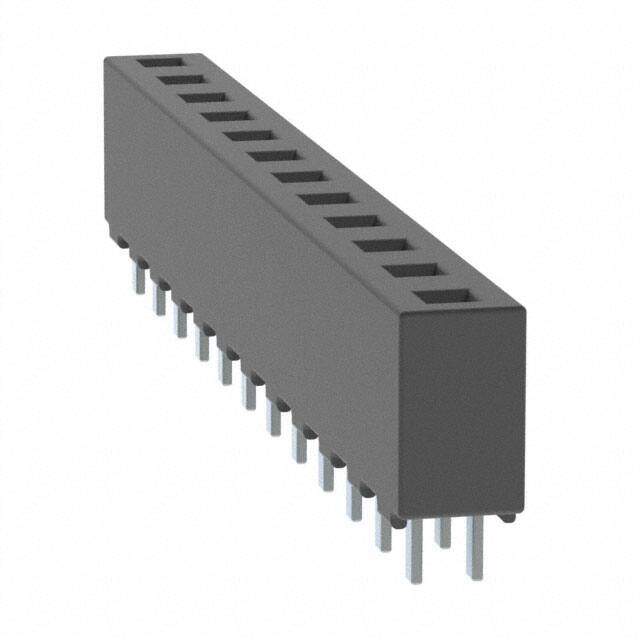

HPF-12-01-T-S image
Favorite
HPF-12-01-T-S image
Favorite

HPF-12-01-T-S

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description POWER EYE CONTACT Rectangular Connector Female Socket
PDF
/
Buying Options
Total Price: USD $4.56
Unit Price: USD $4.5584
≥1 USD $4.5584
≥10 USD $4.1404
≥100 USD $3.648216
≥500 USD $3.100979
≥1000 USD $2.644946
Inventory: 605
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Contact Material Beryllium Copper
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Mounting Option 1 LOCKING

Technical

Packaging Tube
Published 2014
Series HPF
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Number of Rows 1
Additional Feature POWER EYE CONTACT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 5.08mm
Insulation Height 0.351 8.92mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.200 5.08mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.102 2.60mm
Body Breadth 0.2 inch
Empty Shell NO

Dimensions

Length 60.96mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
