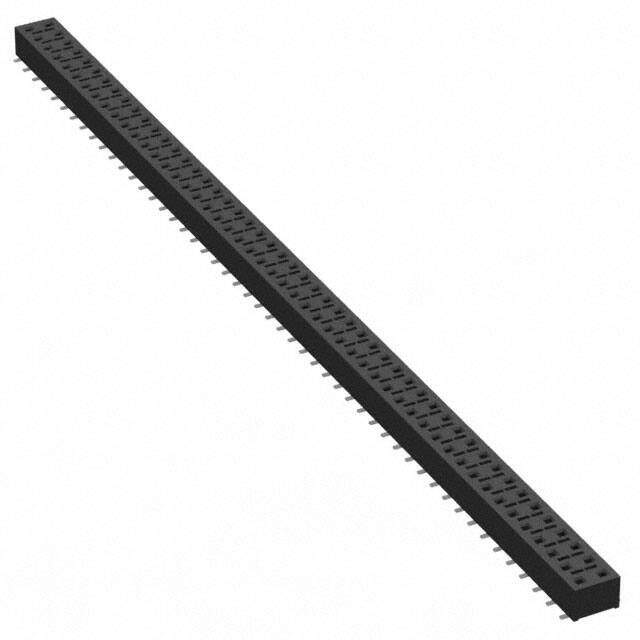

HLE-150-02-S-DV-BE-P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
BOTTOM ENTRY TIGER BEAM CONTACT Rectangular Connector Receptacle
PDF
/
Inventory: 7414
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.1A per Contact
Total Number of Contacts 100
Insulation Height 0.144 3.66mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature BOTTOM ENTRY, TIGER BEAM CONTACT
Voltage - Rated 400VAC
Gender Female
Number of Rows 2
Number of Positions 100
Connector Type Receptacle, Bottom Entry
Termination Solder
Part Status Active
Feature Pick and Place
JESD-609 Code e3
Series HLE
Packaging Tube
Operating Temperature -55°C~125°C
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
