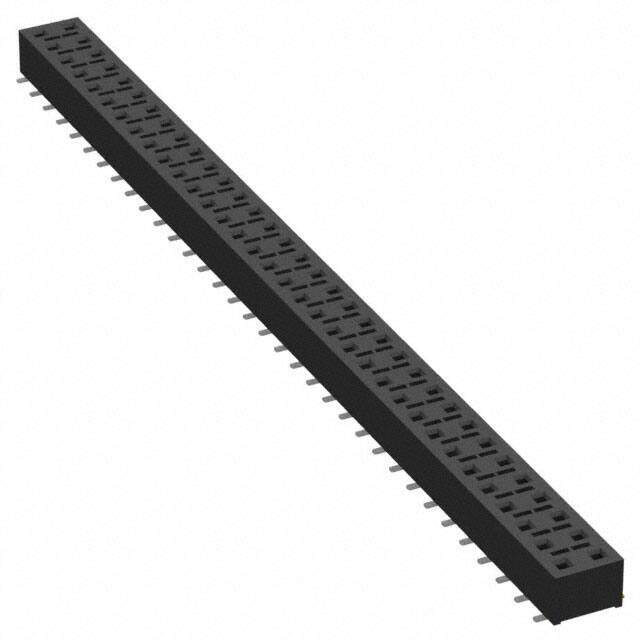

HLE-134-02-S-DV-BE-K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 68 POS 2.54mm Solder ST SMD
PDF
/
Inventory: 9806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Contact Finish - Post Tin
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.144 3.66mm
Total Number of Contacts 68
Current Rating (Amps) 4.1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature BOTTOM ENTRY, TIGER BEAM CONTACT
Voltage - Rated 400VAC
Gender Female
Number of Rows 2
Number of Positions 68
Connector Type Receptacle, Bottom Entry
Termination Solder
Part Status Active
Feature Pick and Place
JESD-609 Code e3
Series HLE
Published 2016
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
