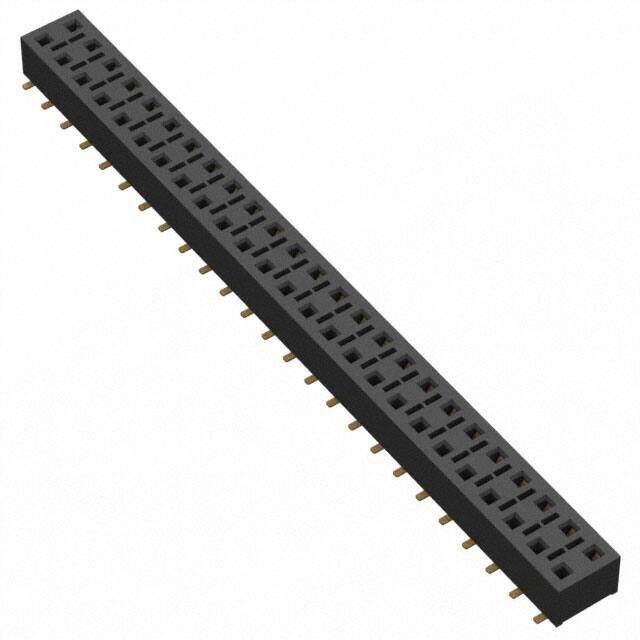

HLE-125-02-G-DV-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
TIGER BEAM CONTACT Rectangular Connector Female Socket
PDF
/
Inventory: 8476
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Technical
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.144 3.66mm
Total Number of Contacts 50
Current Rating (Amps) 4.1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature TIGER BEAM CONTACT
Voltage - Rated 400VAC
Gender Female
Number of Rows 2
Number of Positions 50
Connector Type Receptacle
Termination Solder
Part Status Active
JESD-609 Code e4
Series HLE
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Beryllium Copper
Supply Chain
Factory Lead Time 3 Weeks
