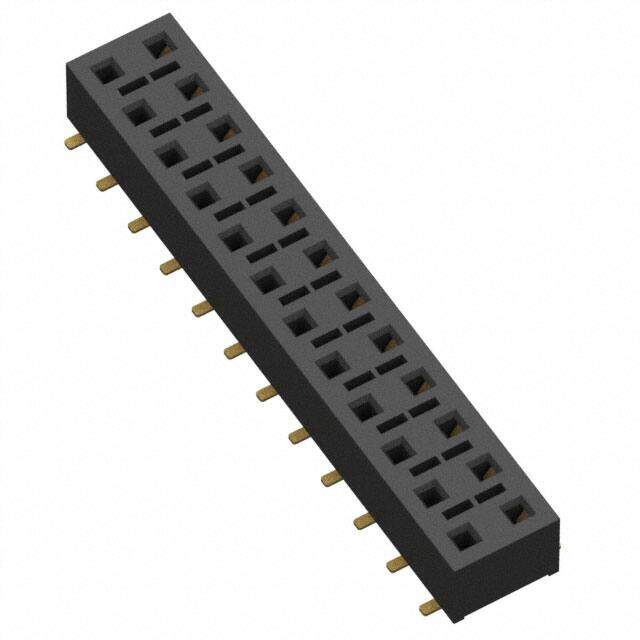

HLE-112-02-G-DV-BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 24 POS 2.54mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $6.42
Unit Price: USD $6.424
≥1 USD $6.424
≥10 USD $5.80536
≥100 USD $5.083056
≥500 USD $4.280461
≥1000 USD $3.745403
Inventory: 313
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2013
Series HLE
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Bottom Entry
Number of Positions 24
Number of Rows 2
Gender Female
Voltage - Rated 400VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.1A per Contact
Total Number of Contacts 24
Orientation Straight
Depth 5.08mm
Insulation Height 0.144 3.66mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Housing Color Black
Max Voltage Rating (AC) 400V
Dimensions
Length 30.48mm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
