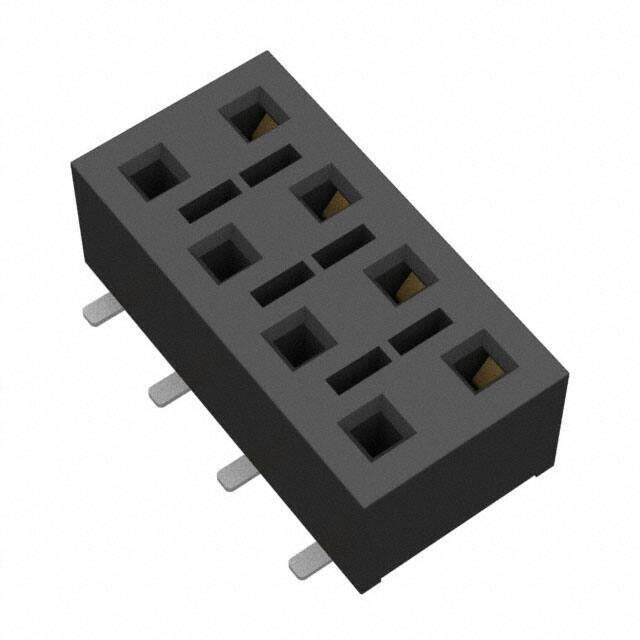

HLE-104-02-LM-DV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Receptacle
PDF
/
Inventory: 8025
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series HLE
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Solder
Connector Type Receptacle
Number of Positions 8
Number of Rows 2
Gender Female
Voltage - Rated 400VAC
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.1A per Contact
Total Number of Contacts 8
Insulation Height 0.144 3.66mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
