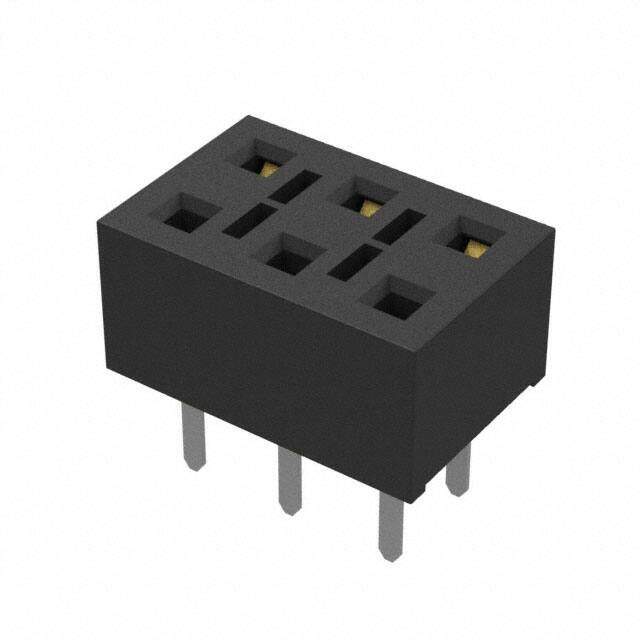

HLE-103-02-F-DV-TE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
TIGER BEAM CONTACT; TOP ENTRY Rectangular Connector Header
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.59062
≥1 USD $1.59062
≥10 USD $1.500587
≥100 USD $1.415651
≥500 USD $1.335517
≥1000 USD $1.25992
Inventory: 9386
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2015
Series HLE
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Receptacle
Number of Positions 6
Number of Rows 2
Gender Female
Voltage - Rated 400VAC
Additional Feature TIGER BEAM CONTACT; TOP ENTRY
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.1A per Contact
Insulation Height 0.138 3.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Finish - Post Tin
Contact Length - Post 0.120 3.05mm
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
