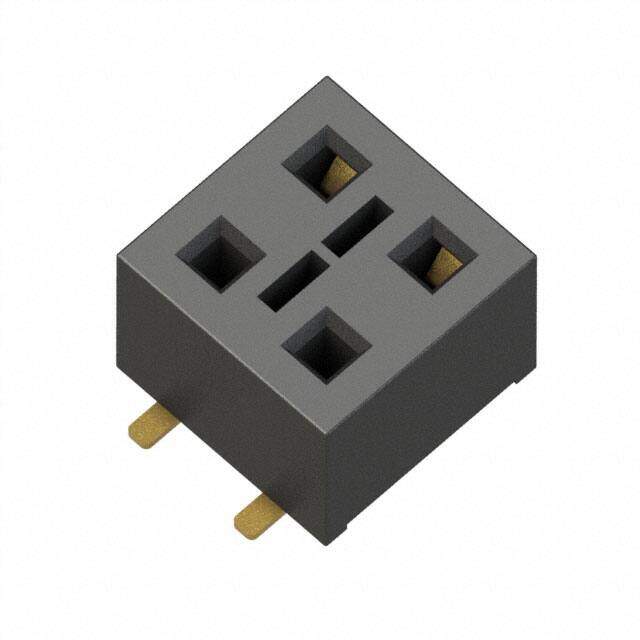

HLE-102-02-G-DV-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Socket Strip SKT 4 POS 2.54mm Solder ST SMD T/R
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.147619
≥1 USD $2.147619
≥10 USD $2.026063
≥100 USD $1.911377
≥500 USD $1.803187
≥1000 USD $1.701114
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Beryllium Copper
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series HLE
JESD-609 Code e4
Part Status Active
Termination Solder
Connector Type Receptacle
Number of Positions 4
Number of Rows 2
Gender Female
Voltage - Rated 400VAC
Additional Feature TIGER BEAM CONTACT
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.1A per Contact
Total Number of Contacts 4
Orientation Straight
Depth 5.08mm
Insulation Height 0.144 3.66mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Max Voltage Rating (AC) 400V
Dimensions
Length 5.08mm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
