FLE-133-01-GF-DV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

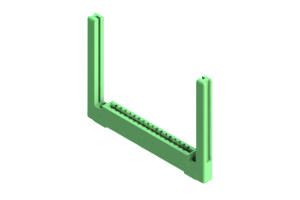

Rectangular Connector Header
PDF
/
Inventory: 7840
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 3.00μin 0.076μm
Technical
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.172 4.37mm
Total Number of Contacts 66
Current Rating (Amps) 2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 66
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series FLE
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
