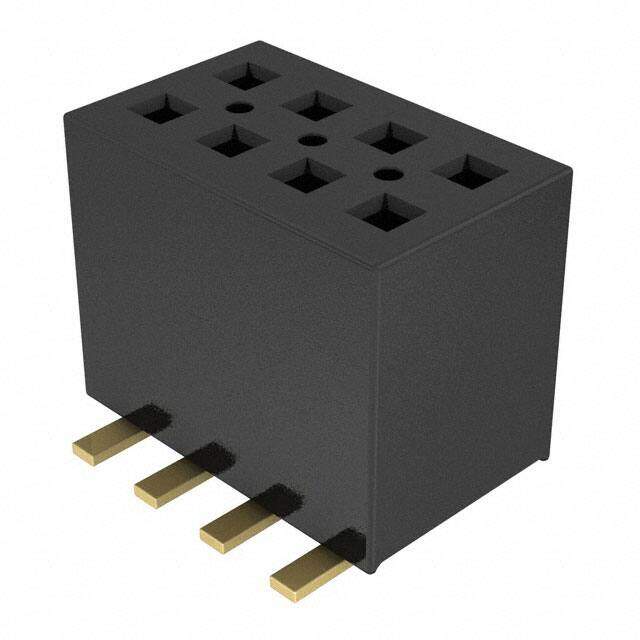

FLE-104-01-H-DV image
Favorite
FLE-104-01-H-DV image
Favorite

FLE-104-01-H-DV

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Rectangular Connector Receptacle
PDF
/
Inventory: 8540
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Contact Finish Thickness - Post 3.00μin 0.076μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.172 4.37mm
Total Number of Contacts 8
Current Rating (Amps) 2A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 8
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series FLE
Packaging Bag
Operating Temperature -55°C~125°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
