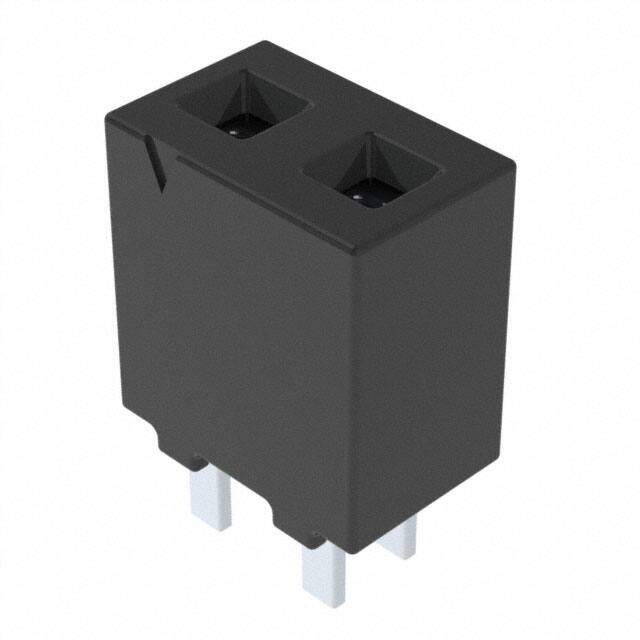

FHP-02-01-T-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Power Socket Strip SKT 2 POS 3.96mm Solder ST Thru-Hole 2 Terminal 1 Port Layer
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.724486
≥1 USD $1.724486
≥10 USD $1.626881
≥100 USD $1.534784
≥500 USD $1.447912
≥1000 USD $1.365956
Inventory: 1741
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2000
Series FHP
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Receptacle
Number of Rows 1
HTS Code 8536.69.40.30
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 5.08mm
Insulation Height 0.350 8.89mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.156 3.96mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.102 2.60mm
Number of Contacts 2
Housing Color Black
Empty Shell NO
Dimensions
Length 7.92mm
Width 5.08mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
