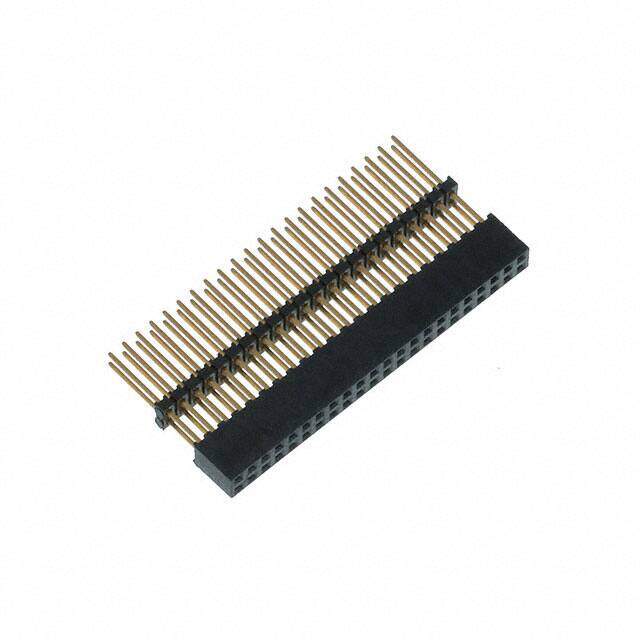

ESQT-122-02-G-D-512
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Rectangular Connector Female Socket
PDF
/
Buying Options
Total Price: USD $12.46
Unit Price: USD $12.46482
≥1 USD $12.46482
≥10 USD $11.759266
≥100 USD $11.093641
≥500 USD $10.465704
≥1000 USD $9.873303
Inventory: 9463
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2016
Series ESQT
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Elevated Socket
Number of Positions 44
Number of Rows 2
Gender Female
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.5A per Contact
Insulation Height 0.512 13.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.338 8.59mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 20.0μin 0.51μm
Contact Finish Thickness - Post 3.00μin 0.076μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
