ESD-109-G-23
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

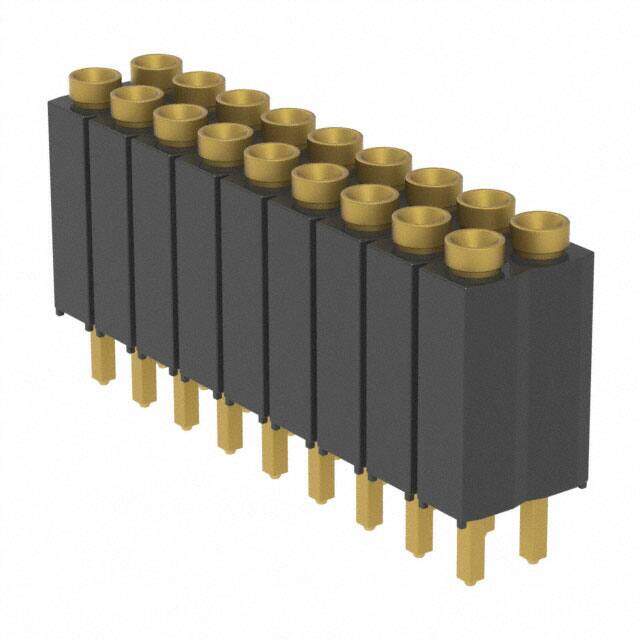

LOW INSERTION FORCE Rectangular Connector Header
PDF
/
Inventory: 4280
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Length - Post 0.115 2.92mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.300 7.62mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature LOW INSERTION FORCE
Gender Female
Number of Rows 2
Number of Positions 18
Connector Type Elevated Socket
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series ESD
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
